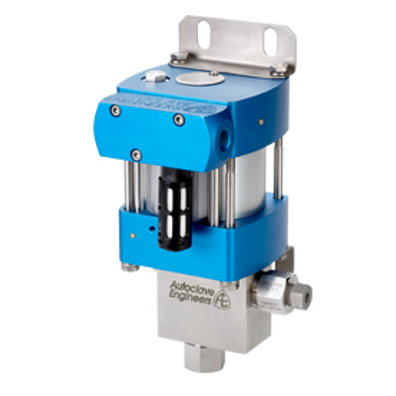

Series ACL189-01

Compact Air-Driven, High Pressure Liquid Pump

Parker Autoclave Engineers ACL189-01 series pump is compact in design, yet offers a range of high pressure output.  Being air driven, the pump is considered explosion proof and safe for use in hazardous areas.  ACL pumps are used for pumping oil, water and oil/water mixtures. Pumps are designed standard with stainless steel wetted parts, making them ideal for most applications. Contact Autoclave Engineers for any questions on optional materials or download product literature.

ACL189-01 Series Pump:
3” Single Acting, Single Piston Air-Drive High Pressure Pump Technical Data

  • Compact, Air Operated Liquid High Pressure Pump
  • 3” Single-Acting, Single Piston Air Drive/Hand Lever Operated
  • Air to Pressure Ratio:  1:220
  • Hardened Stainless Steel Plunger
  • Air Drive Pressure Range: 15-150 psi (1-10 bar)
  • Volume Displacement per Stroke:  .04 in³ (.66 cm³)
  • Maximum Outlet Pressure:  31,900 psi (2200 bar)
  • Isolation (distance) chamber to protect air-drive section from high pressure seal leakage is optional


High strength stainless steel pump pressure heads specifically designed and engineered for high cycle life.  Extended service check valves with ceramic balls. Sealed, anodized aluminum parts for better protection from harsh environments. Latest lubrication technology provides long, maintenance free seal service life and improves pump efficiency and performance.  Noise reduction features are standard. This attention to detail is what sets Parker Autoclave Engineers products apart from the competition.
