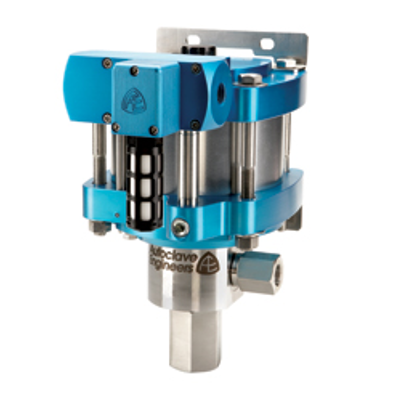

Series ASL10-01

Air-Driven, High Flow, High Pressure Liquid Pump

Parker Autoclave Engineers ASL10-01 series pump is capable of pressures to 1,600 psi and offers flow rates up to 5 Gallons per Minute (GPM).  Being air driven, the pump is explosion proof and safe for use in hazardous areas.  Pumps are used for pumping oil, water or oil/water mixtures.  All AE pumps are designed standard with stainless steel wetted parts, making them ideal for most applications. Contact Parker Autoclave Engineers for any questions on optional materials or download product literature.

ASL10-01 Series Pump:
6” Single Acting, Single Piston High Pressure Liquid Pump

Features:
  • Standard Liquid High Flow, High Pressure Pump
  • 6” Single-Acting, Single Piston Air Drive
  • Air to Pressure Ratio:  1:11
  • Stainless Steel Plunger Utilizing a Proprietary Multilayer Carbon Based Coating with Diamond-Like Carbon Exterior Layer  - 3 times the Hardness of Stellite with a Coefficient of Friction Equal to/Less Than PTFE!
  • Air Drive Pressure Range: 15-150 psi (1-10 bar)
  • Volume Displacement per Stroke:  5.22 in³ (85.5 cm³)
  • Fill Flow Rate (@ 1 psi): 5 GPM (19 LPM)
  • Maximum Outlet Pressure:  1,600 psi (110 bar)
  • Isolation (distance) chamber to protect air-drive section from high pressure seal leakage is optional

Benefits:

High strength stainless steel pump pressure heads specifically designed and engineered for high cycle life;  Extended service check valves with ceramic balls;  Sealed, anodized aluminum parts for better protection from harsh environments; Proprietary high pressure plunger coating utilized for low friction, increased wear and corrosion resistance;  Latest lubrication technology provides long, maintenance free seal service life and improves pump efficiency and performance;  and noise reduction features are included as standard. As you can see, this attention to detail is what sets Parker Autoclave Engineers products apart from the competition.
