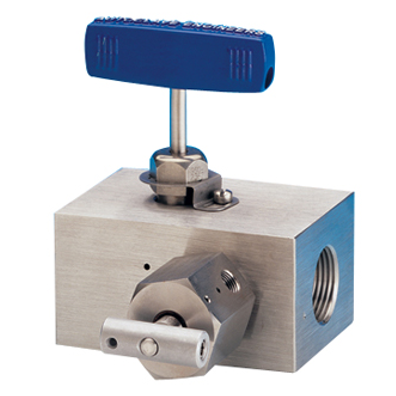

Wellhead Gauge Valve, Needle Style

Wellhead Gauge and Bleed Needle Valve to 30,000 psi (2068 bar)

 Since 1945 Parker Autoclave Engineers has designed and built premium quality valves, fittings and tubing.
Parker Autoclave Engineers has long been established as the world leader in high-pressure fluid handling components for the chemical/petrochemical, research, and oil and gas industries.

FEATURES Gauge Valve
  • One inlet, three outlet ports
  • Metal-to-metal bubble tight shut-off
  • Packing below stem threads
  • Two piece non-rotating stem on standard valve

FEATURES  Bleed Valve
  • One piece hex construction allows easy installation
  • Vent port tapped for plumbing to safe area
  • Tee handle for easy operation
  • Positive blow out prevention on stem

Parker Autoclave Engineers Wellhead Gauge valves are designed for reliable shut-off service at a maximum working pressure of 30,000 psi (2068 bar). The Wellhead Gauge and Bleed Valves are standard in 316 stainless steel material. Special materials available on request.
