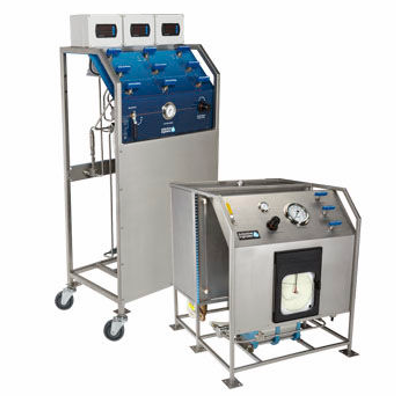

Packaged Pressure Systems

Portable Pressure Systems

Move your high pressure test stand anywhere you nedd it to be...

Powder Coated Steel, Stainless Steel or Aluminum Frame Options Single or Dual Pump Systems with or without reservoir Utilizes any Combination ASL, ACL, AHL, or AFL Air-Driven Liquid Pumps Outlet Pressures to 60.000 PSI (4140 bar) - Flows to 7.6 GPM (29 lpm) Vertical or Horizontal Frame Designs with Optional Casters Totally Self Contained-Electricity not Required, Only Air All Air Controls Included, No lubrication Needed Isolation Valves, Relief Valves, Rupture Disks, Stroke Counters and other Options Available

Custom Pressure Systems
Modify the Standard Design to Incorporate Specified Instruments or Request Fit-for-Purpose Designs

Powder Coated Steel, Aluminum or Stainless Steel Open/Enclosed Frame Options Fit-for-Purpose Enclosures/Benches/Reels or Test Chambers Utilize any ASL, AHL, or AFL Air-Driven Liquid Pump(s) Options Include All Standard Options plus: Remote Controlled Valves, Relief/Rupture Disk Systems, Digital Displays, Injection Controllers, Chart Recorders, Data Loggers, PLC or Computer Controls.
